Double Spiral Freezer for Seafood, Meat, Poultry, Bread, and Prepared food

Short Description:

The double spiral freezer is a highly efficient freezing system that can freeze large quantity of products in limited place. It takes small footprint but provides larger capacity. It is widely used to quick freezing small piece and large sized food, such as aquatic product, hot pot product, meat products, pastry, poultry, ice cream, bread dough, etc.

The system is designed and manufactured in accordance with HACCP’s hygienic requirements for food processing equipment, we can also do customized design according to the customers’ requirements and site condition.

Inquiry

Features

Parameter

Our Service

Application

Video

Product Features

Open structure: fully welded, high hygienic inside.

Food delivery mode: Low inlet and low outlet, easy to operate.

Efficient evaporator: equipped with aluminum alloy evaporator, aluminum tubes and fins, makes the heat exchange efficiency 20% higher than traditional freezers. Easy access and cleaning.

Stainless steel conveyor belt: food grade and high-strength SUS304 stainless steel, flat surface, minimum belt mark on products. There are baffle edges on both sides of belt, which can prevent the products from dropping down.

Polyurethane insulated enclosure: double-sided 0.5 mm SUS304, sealed enclosure with good insulation.

replicate-prediction-yalnmddzmzbf3ohkoz75axway4_副本

Symmetrical and circulative airflow: minimize product weight loss; lower cold loss, improve freezing efficiency.

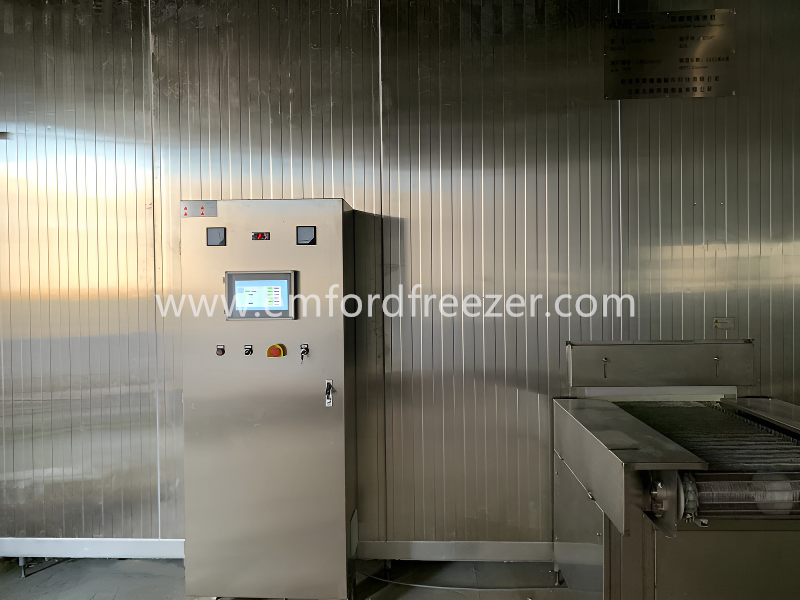

Intelligent control system: PLC touch screen, easy opertation. Real-time display of IQF running status, automatic mode and manual mode to choose. Equipped with conveyor belt overturn sensor, belt induction regulator, special warning device, and emergency stop button.

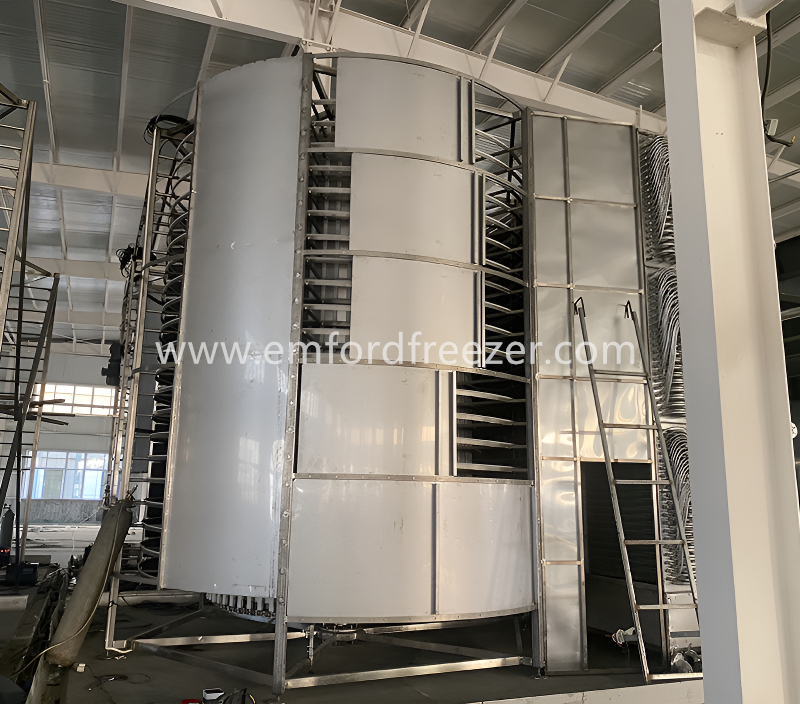

Installation

replicate-prediction-ea37phnfwnbijhl5tg6usn6aue

replicate-prediction-gu6d7cu3jfhpbfswd4tf6wfvxq_副本

replicate-prediction-g7dfn6lqsrb6nfgjusbo7vx6eq

replicate-prediction-fqvuwmsqb5hx3nwgmssujk2ibe

replicate-prediction-hzwvc4z6jrg2rgtcniji3nunbi

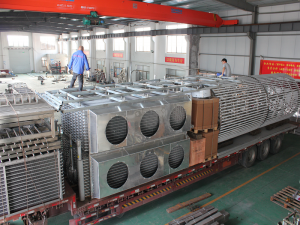

Delivery

Parameters

Structure	Double drum
Tiers	4 to 40 tiers
Cage dia.	1,620 to 3,000mm
Belt	Food grade ss mesh belt or modular plastic belt
Belt width	500 to 2,000mm
Inlet device length	500 to 1,000mm
Outlet device length	500 to 1,000mm
Electrical power	Local country voltage
Electrical system	SUS304 control cabinet, PLC control, touch screen, safety sensors
Refrigerant	Freon, Ammonia, CO2
Evaporating temp.	-40℃ to -45 ℃

Our Service

Customized Design Service

★ Customized design equipment according to your site condition.
★ Equipment technical consultation service.

Installation Service

★ Training how to install the machine, training how to use the machine.
★ Engineers available to service machinery overseas.

Application

Aquatic Products

Poultry Products

Pastry Products

Bakery Products

Prepared Meals

Convenient/Preserved Products

Ice Cream Products

Fruit & Vegetable

Beef

Production Video

Why Choose Us

Why Choose AMF Double Drum Spiral Freezer

1. The compact design reduces operating costs and saves floor space.

2. We have rich experience in designing, producing, and installing double drum spiral freezers in various food industries, including but not limited to seafood, pastries, hamburgers, steaks, poultry, vegetables, fruits and so on.

3. Compared to traditional quick freezer machine, spending the same time, double drum spiral freezer brings higher productivity and greater economic benefits for you.

4. High output, energy saving and environmental protection: the air flow and temperature distribution are uniform through reasonable structural design to achieve the best heat transfer and minimum product dehydration.
